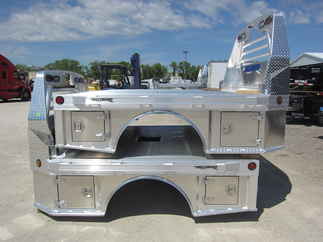

New Hillsboro 8.5' x 96 3500 Series Flatbed Truck Bed

• Price: $8,468
• Stock #: 67240
• Location: Sycamore
• Condition: New
• Manufacturer: Hillsboro
• Model: 3500 Series
• Construction Material: Aluminum
• Length: 8.5'
• Width: 96.00"
• Cab to Axle: 56"
• Frame Rail Width: 38"
• Manufacturer Part #: 77416 ALT96-102-38/42-56-4Box-
• Headache Rack Height: Adj
• Weight: 925 LBS
• Warranty: Mfg Limited Warranty. Exclusions may apply.

Description:

New Hillsboro 3500 Series Flatbed body only, 8.5' long x 96 inch wide, 56 inch cab to axle, 38 inch frame rail width, Adj inch headache rack height (overall from bottom of frame rails to top of HR), HILLSBORO - 3500 Series, Ford/GM, 4 Boxes, Adjustable frame rails 38/42, Adj HR, 45 degree corners, GN & BP Hitches, color: Aluminum. Mfg part # 77416 ALT96-102-38/42-56-4Box-3500 F/G. Weighs approx 925 lbs. Serial # 67240.

Will this bed fit my truck?  This is the standard recommendation for a:

This bed fits All makes (Ford, Chevy, Ram, etc) IF it is a:




- DUAL Rear Wheel




- LONG bed (8' long)




- 38 inch Frame Rail width

Please measure your truck to compare & verify. Exclusions & limitations may apply.

STANDARD FEATURES FOR HILLSBORO 3500 SERIES:

• 3 Year Warranty,


• Corrosion resistant,


• Supersize Storage Compartments,


• Toolboxes have weather-resistant EPDM closed-cell foam seal,


• Toolboxes and skirting made of .125 thickness aluminum,


• Latches are polished stainless steel with key-locking 'T' handle,


• B&W Compatible/Ready to accept optional Hillsboro B&W Conversion Kit (Optional),


• 30K Gooseneck ball plate with flush mount cover (2 5/16 inch 30K ball included),


• 18K Receiver Hitch with 2 1/2 inch tube (2 inch Adapter included),


• High Strength Aluminum Extruded Floor,


• Heavy Duty Tread Brite Tailboard,


• 3 inch Aluminum I-beam crossmembers with approximate 16 inch spacing,


• Heavy Duty 6 inch tall extruded rubrail,


• Heavy Duty adjustable height headache rack with square tube louvers,


• 4 inch x 2 inch tube steel long rails adjustable to 34 inch, 38 inch, 42 inch frame,


• Recessed aluminum castings for taillights and tag,


• Tapered rear with step,


• Tapered front on 96 inch wide dual wheel beds,


• 3 inch Extruded tie rail w/ stake pockets,


• LED lights (6) stop, turn & tail and (4) back-up, LED clearance & side marker lights,


• Sealed wiring harness with plug-in connections,


• Lights and harness installed.

TERMINOLOGY:

• Length: Measurement from the back of the cab to end of frame


• Width:  Measurement from outside of rear tire to outside of rear tire


• CA: Measurement from the back of the cab to center of rear axle


• Rails:  Measurement from outside of frame rail to outside of frame rail (at the rear of the frame)


• HR: Headache rack. Overall height from bottom of bed's frame rails to top of Headache rack.

**PLEASE NOTE: CUSTOMER IS RESPONSIBLE FOR VERIFYING THE TRUCK BED WILL FIT THEIR VEHICLE PRIOR TO PURCHASE.  UNDER NO CIRCUMSTANCES MAY A BED BE RETURNED ONCE INSTALLED OR MODIFIED IN ANY WAY.**

• Mounting brackets, Hardware, Fuel filler necks, Wiring adapter(s), etc are NOT included with the bed and are sold separately.


• The vehicle's exhaust may require modification after install. This is the customer's responsibility and not included with install.


• For gas trucks, a grounding strap attached to the fuel fill box may be required to prevent static electricity & sparking.


• Installation of back-up cameras and/or rear sensors require additional time and labor. (Not included in the standard install rate)

Located in Sycamore, IL 60178.
